Sub-CompactPerformance profile
TYM T330
The TYM T330 is a compact tractor that packs a punch. It's powered by a Kubota D1503 engine, which is a 3-cylinder diesel engine that's liquid-cooled. This engine puts out 31 hp at 2800 rpm, making it great for small to medium-sized farm tasks. The tractor has a sync shuttle hydrostatic transmission with 12 forward and 12 reverse gears, giving you plenty of options for different jobs. This tractor is built to be easy to use and maintain. It has a Category I hitch, which is common for tractors this size, and a rear PTO that spins at 540 rpm. The T330 is compact, measuring 121 inches long, 52 inches wide, and 93 inches tall. It weighs 3000 lb, so it's sturdy but not too heavy. The tractor has an electric starter and comes with ROPS (Roll-Over Protective Structure) for safety. With a wheelbase of 64 inches, it's stable and easy to maneuver around the farm.
ManufacturerTYMPower31 hpEngine3-cylTranssync shuttle hydrostatic
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 31hp
- Operating Weight
- 3,000 lb
- Transmission
- sync shuttle hydrostatic
At a glance
How the T330 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
31 hp · 59th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The T330 ranks at the 59th percentile for engine power among recorded sub-compact tractors.
Overview
About the TYM T330
The TYM T330 is a compact tractor that packs a punch. It's powered by a Kubota D1503 engine, which is a 3-cylinder diesel engine that's liquid-cooled. This engine puts out 31 hp at 2800 rpm, making it great for small to medium-sized farm tasks. The tractor has a sync shuttle hydrostatic transmission with 12 forward and 12 reverse gears, giving you plenty of options for different jobs. This tractor is built to be easy to use and maintain. It has a Category I hitch, which is common for tractors this size, and a rear PTO that spins at 540 rpm. The T330 is compact, measuring 121 inches long, 52 inches wide, and 93 inches tall. It weighs 3000 lb, so it's sturdy but not too heavy. The tractor has an electric starter and comes with ROPS (Roll-Over Protective Structure) for safety. With a wheelbase of 64 inches, it's stable and easy to maneuver around the farm.
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T330 |
| Category | Sub-Compact tractor |
| Operating weight | 3,000lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1503 |
| Power | 31hp |
| Cylinders | 3 |
| Displacement | 91.5ci |
| Bore | 3.26in |
| Stroke | 3.64in |
Transmission
| Type | sync shuttle hydrostatic |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Power take-off
| Rear PTO | Rear PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 121in |
|---|---|
| Width | 52in |
| Height | 93in |
| Operating weight | 3,000lb |
Capacities
| Cooling system | 1.85gal |
|---|
Head to head
T330 vs. Sub-Compact median
How the TYM T330 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 31 hp | 26.9 hp | +15% | 59th |
| Engine Displacement | 91.5 ci | 91.4 ci | 0% | 51st |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,000 lb | 2,700 lb | +11% | 56th |
| Length | 121 in | 113 in | +7% | 61st |
| Width | 52 in | 50.7 in | +3% | 53rd |
| Height | 93 in | 78.4 in | +19% | 82nd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5030 | 31 hp | 2,530 lb | 1979–1985 | Compare → |
| Allis Chalmers D12 | 31 hp | 2,800 lb | 1959–1968 | Compare → |
| Antonio Carraro Tigre 4000 | 31 hp | — | — | Compare → |
| Belarus 250AS | 31 hp | 6,614 lb | 1979–1987 | Compare → |
| Belarus Golfmaster | 31 hp | 5,155 lb | — | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery

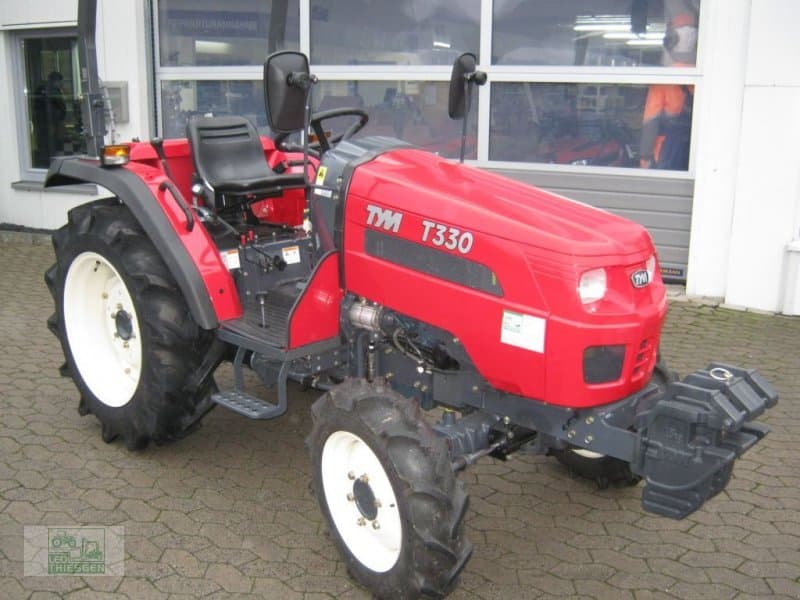

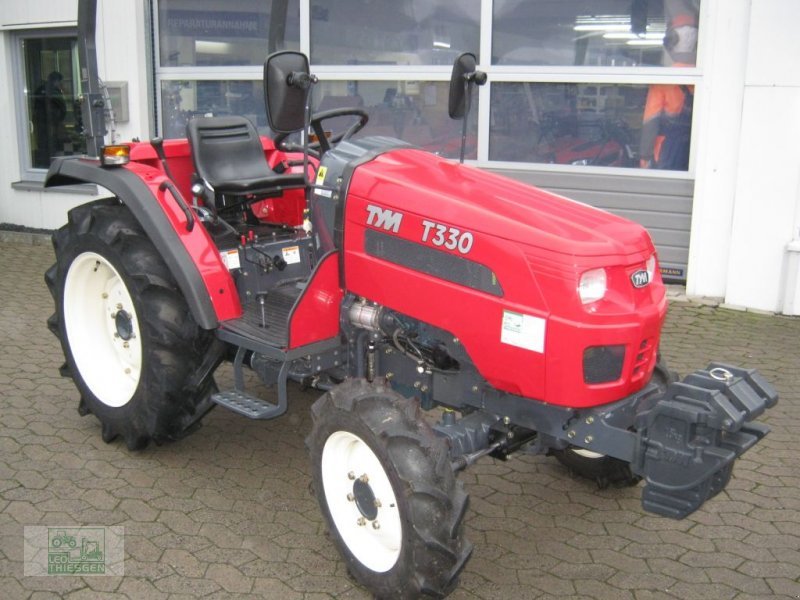

TYM T330 photos
FAQ
Common questions
What is the engine power output of the TYM T330?
Rated engine output for the TYM T330 is 31 hp, delivered by a 3-cylinder engine. The engine displaces 91.5 ci.
Which transmission does the TYM T330 use?
The TYM T330 is equipped with a sync shuttle hydrostatic transmission with 12 forward gears.
What hitch category is the TYM T330?
The TYM T330 uses a Category I hitch.
What is the operating weight of the TYM T330?
In working trim, the TYM T330 comes in at roughly 3,000 lb.
How do I maintain a TYM T330?
Routine service for the TYM T330 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
