TYM T280
The TYM T280 is a compact tractor designed for various farming tasks. It's powered by a Kubota D1503 engine, which is a 3-cylinder diesel engine that produces 28 horsepower. This liquid-cooled engine has a displacement of 91.5 cubic inches, making it suitable for small to medium-sized farm operations. The T280 features a synchromesh transmission with 16 forward and 16 reverse gears, giving the operator plenty of options for different tasks and speeds. It has power steering for easy maneuvering and a Category I hitch for attaching various implements. The tractor measures 122 inches long, 50 inches wide, and 80 inches tall, with an operating weight of 2,798 pounds. It comes equipped with a ROPS (Roll-Over Protective Structure) for operator safety and has 11.2-24 rear tires for good traction in the field. With 13 inches of ground clearance, the T280 can handle uneven terrain and obstacles with ease.
ManufacturerTYMPower28 hpEngine3-cylTransSynchromesh
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 28hp
- Operating Weight
- 2,798 lb
- Transmission
- Synchromesh
At a glance
How the T280 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
28 hp · 53rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The T280 ranks at the 53rd percentile for engine power among recorded sub-compact tractors.
Overview
About the TYM T280
The TYM T280 is a compact tractor designed for various farming tasks. It's powered by a Kubota D1503 engine, which is a 3-cylinder diesel engine that produces 28 horsepower. This liquid-cooled engine has a displacement of 91.5 cubic inches, making it suitable for small to medium-sized farm operations. The T280 features a synchromesh transmission with 16 forward and 16 reverse gears, giving the operator plenty of options for different tasks and speeds. It has power steering for easy maneuvering and a Category I hitch for attaching various implements. The tractor measures 122 inches long, 50 inches wide, and 80 inches tall, with an operating weight of 2,798 pounds. It comes equipped with a ROPS (Roll-Over Protective Structure) for operator safety and has 11.2-24 rear tires for good traction in the field. With 13 inches of ground clearance, the T280 can handle uneven terrain and obstacles with ease.
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T280 |
| Category | Sub-Compact tractor |
| Operating weight | 2,798lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1503 |
| Power | 28hp |
| Cylinders | 3 |
| Displacement | 91.5ci |
| Bore | 3.3in |
| Stroke | 3.6in |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Steering | Power |
|---|---|
| Cab | ROPS |
Dimensions
| Length | 122in |
|---|---|
| Width | 50in |
| Height | 80in |
| Operating weight | 2,798lb |
Tires
| Rear | 11.2-24 |
|---|
Head to head
T280 vs. Sub-Compact median
How the TYM T280 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28 hp | 26.9 hp | +4% | 53rd |
| Engine Displacement | 91.5 ci | 91.4 ci | 0% | 51st |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 16 | 9 | +78% | 89th |
| Operating Weight | 2,798 lb | 2,700 lb | +4% | 52nd |
| Length | 122 in | 113 in | +8% | 63rd |
| Width | 50 in | 50.7 in | -1% | 49th |
| Height | 80 in | 78.4 in | +2% | 53rd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
| Allis Chalmers D10 | 28.57 hp | 2,700 lb | 1959–1967 | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery

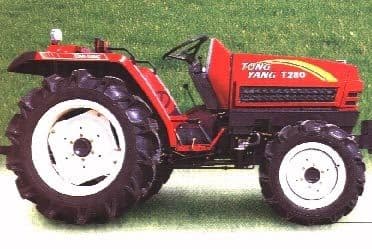

TYM T280 photos
FAQ
Common questions
How much horsepower does the TYM T280 have?
The TYM T280 produces 28 hp from its 3-cylinder engine. Engine displacement is 91.5 ci.
What transmission is in the TYM T280?
Transmission on the TYM T280 is Synchromesh, with 16 forward speeds.
What size tires does the TYM T280 use?
Factory rubber for the TYM T280 is 11.2-24 rear tires.
What hitch category is the TYM T280?
The TYM T280 uses a Category Category 3 hitch.
How much does the TYM T280 weigh?
The TYM T280 weighs about 2,798 lb in operating condition.
What maintenance does the TYM T280 require?
Like any tractor, the TYM T280 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
