Sub-CompactPerformance profile

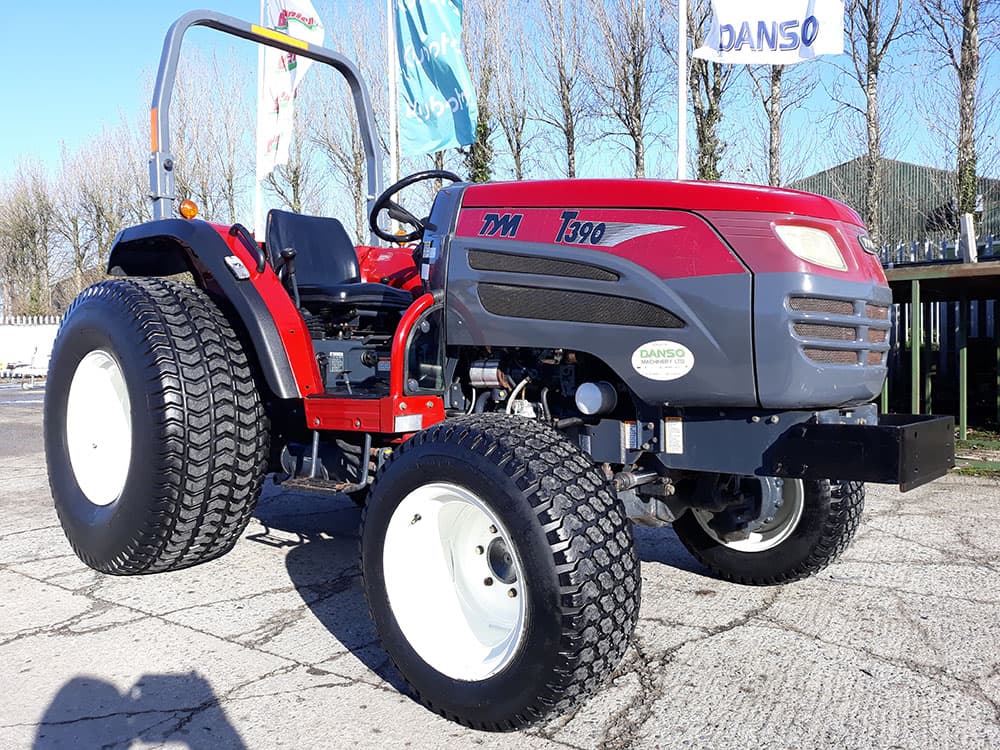

TYM T390
The TYM T390 is a versatile tractor designed for various farming tasks. It features a Kubota V1903 engine, which is a 4-cylinder diesel engine that produces 39 horsepower. This liquid-cooled engine has a displacement of 113.3 cubic inches, providing reliable power for everyday farm work. The T390 comes with a synchromesh transmission that offers 12 forward and 12 reverse gears, giving operators plenty of options for different jobs. It has power steering for easy handling and a Category I hitch for attaching various implements. The tractor measures 132 inches long, 60 inches wide, and 95 inches tall, making it compact enough for many farm applications. With an operating weight of 3,695 pounds and 13.6-24 rear tires, it provides good stability and traction in the field. The T390 also features a ROPS (Roll-Over Protective Structure) for operator safety and an electric starter for easy engine ignition.
ManufacturerTYMPower39 hpEngine4-cylTransSynchromesh
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 39hp
- Operating Weight
- 3,695 lb
- Transmission
- Synchromesh
At a glance
How the T390 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
39 hp · 73rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The T390 ranks at the 73rd percentile for engine power among recorded sub-compact tractors.
Overview
About the TYM T390
The TYM T390 is a versatile tractor designed for various farming tasks. It features a Kubota V1903 engine, which is a 4-cylinder diesel engine that produces 39 horsepower. This liquid-cooled engine has a displacement of 113.3 cubic inches, providing reliable power for everyday farm work. The T390 comes with a synchromesh transmission that offers 12 forward and 12 reverse gears, giving operators plenty of options for different jobs. It has power steering for easy handling and a Category I hitch for attaching various implements. The tractor measures 132 inches long, 60 inches wide, and 95 inches tall, making it compact enough for many farm applications. With an operating weight of 3,695 pounds and 13.6-24 rear tires, it provides good stability and traction in the field. The T390 also features a ROPS (Roll-Over Protective Structure) for operator safety and an electric starter for easy engine ignition.
Full specifications
Every recorded spec
General
| Manufacturer | TYM |
|---|---|
| Model | T390 |
| Category | Sub-Compact tractor |
| Operating weight | 3,695lb |
Engine
| Make | Kubota |
|---|---|
| Model | V1903 |
| Power | 39hp |
| Cylinders | 4 |
| Displacement | 113.3ci |
| Bore | 3.1in |
| Stroke | 3.6in |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Power |
|---|---|
| Cab | ROPS |
Dimensions
| Length | 132in |
|---|---|
| Width | 60in |
| Height | 95in |
| Operating weight | 3,695lb |
Tires
| Rear | 13.6-24 |
|---|
Head to head
T390 vs. Sub-Compact median
How the TYM T390 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 39 hp | 26.9 hp | +45% | 73rd |
| Engine Displacement | 113 ci | 91.4 ci | +24% | 65th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,695 lb | 2,700 lb | +37% | 70th |
| Length | 132 in | 113 in | +16% | 83rd |
| Width | 60 in | 50.7 in | +18% | 74th |
| Height | 95 in | 78.4 in | +21% | 87th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared TYM tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
TYM siblings
Explore
Similar-spec models
Gallery
TYM T390 photos
FAQ
Common questions
What is the engine power output of the TYM T390?
Rated engine output for the TYM T390 is 39 hp, delivered by a 4-cylinder engine. The engine displaces 113.3 ci.
Which transmission does the TYM T390 use?
The TYM T390 is equipped with a Synchromesh transmission with 12 forward gears.
What size tires does the TYM T390 use?
Factory rubber for the TYM T390 is 13.6-24 rear tires.
What is the operating weight of the TYM T390?
In working trim, the TYM T390 comes in at roughly 3,695 lb.
How do I maintain a TYM T390?
Routine service for the TYM T390 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
