Yanmar F17D
The Yanmar F17D is a compact tractor that was made from 1984 to 1994. It's a good choice for small farms and gardens. This tractor is 102 inches long, 44 inches wide, and 74 inches tall. It weighs 2,161 pounds, which is light enough to work in tight spaces. The F17D has a Yanmar 3TN75U engine. This engine is diesel-powered and has three cylinders. It's liquid-cooled, which helps it run smoothly in different weather. The engine puts out 21 horsepower, making it strong enough for many farm tasks. It has a displacement of 60.7 cubic inches, which is average for its size. The tractor uses a gear transmission and has a Category 3 hitch, making it easy to attach different tools.

Key specifications
- Category
- Sub-Compact
- Engine power
- 21hp
- Operating weight
- 2,161 lb
- Transmission
- Gear
Category comparison
F17D compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
This model
The F17D ranks at the 28th percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar F17D
The Yanmar F17D is a compact tractor that was made from 1984 to 1994. It's a good choice for small farms and gardens. This tractor is 102 inches long, 44 inches wide, and 74 inches tall. It weighs 2,161 pounds, which is light enough to work in tight spaces. The F17D has a Yanmar 3TN75U engine. This engine is diesel-powered and has three cylinders. It's liquid-cooled, which helps it run smoothly in different weather. The engine puts out 21 horsepower, making it strong enough for many farm tasks. It has a displacement of 60.7 cubic inches, which is average for its size. The tractor uses a gear transmission and has a Category 3 hitch, making it easy to attach different tools.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | F17D |
| Category | Sub-Compact tractor |
| Years built | 1984–1994 |
| Operating weight | 2,161lb(980.2 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TN75U |
| Power | 21hp(15.66 kW) |
| Cylinders | 3 |
| Displacement | 60.7ci(0.99 L) |
| Bore | 2.95in(74.93 mm) |
| Stroke | 2.95in(74.93 mm) |
Transmission
| Type | Gear |
|---|
Dimensions
| Length | 102in(2,591 mm) |
|---|---|
| Width | 44in(1,118 mm) |
| Height | 74in(1,880 mm) |
| Operating weight | 2,161lb(980.2 kg) |
Closest alternatives
F17D compared with the nearest models by horsepower
Among sub-compact tractors, the Kioti CS2210 and the New Holland TZ21D are closest to the Yanmar F17D in rated horsepower. The Kioti CS2210 matches it on rated power and weighs 680 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 2016, 32 years after the F17D. The New Holland TZ21D matches it on rated power and weighs 700 lb less, carrying 70 lb per horsepower against 103 lb. It entered production in 2008, 24 years after the F17D. Of the 3 models, the F17D has the highest weight per horsepower at 103 lb per hp.
| Spec | Yanmar F17D | Kioti CS2210 | New Holland TZ21D |
|---|---|---|---|
| Engine power | 21 hp15.7 kW | 21 hp15.7 kW | 21 hp15.7 kW |
| Operating weight | 2,161 lb980 kg | 1,485 lb674 kg | 1,460 lb662 kg |
| Weight per hp | 103 lb/hp63 kg/kW | 71 lb/hp43 kg/kW | 70 lb/hp42 kg/kW |
| Displacement | 60.7 ci0.99 L | 69 ci1.13 L | 58.2 ci0.95 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | Hydrostatic | Hydrostatic |
| Drive | - | MFWD 4WD | 4WD |
| Years built | 1984-1994 | 2016+ | 2008-2011 |
Calculators
Calculators for the F17D
PTO power
About 17 to 19 PTO hp
Estimated from the 21 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 21 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
120 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
21 hp is 15.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar F17D
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TN75UAmazon
Fits the Yanmar 3TN75U 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TN75UAmazon
Fits the Yanmar 3TN75U 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TN75UAmazon
Fits the Yanmar 3TN75U 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TN75UAmazon
Fits the Yanmar 3TN75U 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar F17D service and repair manualseManualOnline
Digital manuals. Built 1984 to 1994. Check the serial number range on the listing.
- Yanmar F17D operator's manualAmazon
Printed and reprint manuals. Built 1984 to 1994. Check the serial number range on the listing.
- Yanmar F17D service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
F17D vs. Sub-Compact median
Yanmar F17D compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21 hp | 26.9 hp | -22% | 28th |
| Engine Displacement | 60.7 ci | 91.4 ci | -34% | 20th |
| Cylinders | 3 | 3 | at median | 50th |
| Operating Weight | 2,161 lb | 2,700 lb | -20% | 40th |
| Length | 102 in | 113 in | -10% | 32nd |
| Width | 44 in | 50.7 in | -13% | 23rd |
| Height | 74 in | 78.4 in | -6% | 38th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

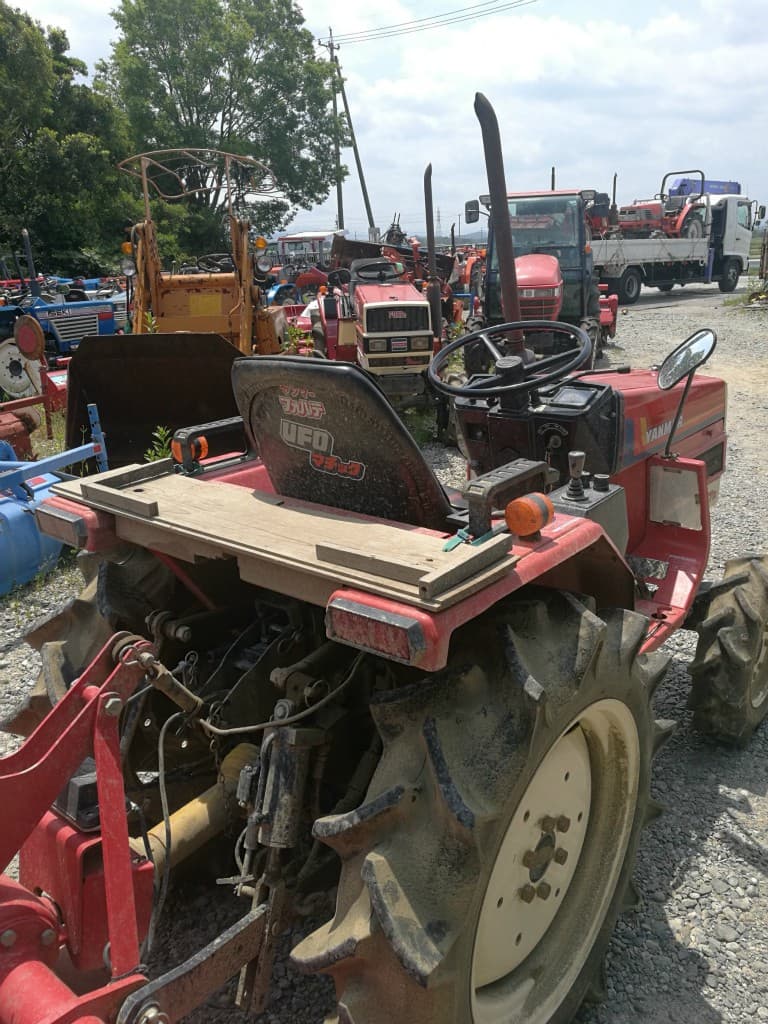

Yanmar F17D photos





FAQ
Frequently asked questions
When was the Yanmar F17D made?
The Yanmar F17D was manufactured from 1984 to 1994.
What hitch category is the Yanmar F17D?
The Yanmar F17D uses a Category Category 3 hitch.
What is the engine power output of the Yanmar F17D?
Rated engine output for the Yanmar F17D is 21 hp, delivered by a 3-cylinder engine. The engine displaces 60.7 ci.
What is the operating weight of the Yanmar F17D?
The Yanmar F17D has an operating weight of about 2,161 lb.
Which transmission does the Yanmar F17D use?
The Yanmar F17D is equipped with a Gear transmission.
How do I maintain a Yanmar F17D?
Routine service for the Yanmar F17D covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
