Sub-CompactPerformance profile

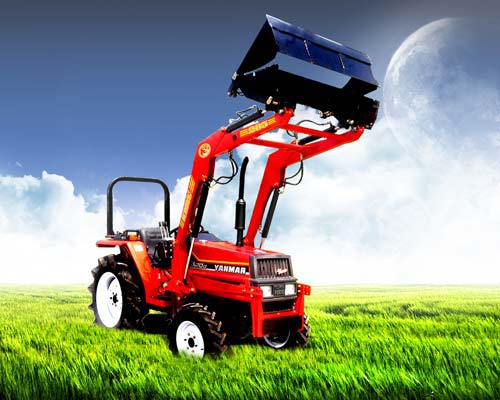

Yanmar FX20

The Yanmar FX20 is a compact and powerful tractor designed for various farming tasks. It features a three-speed power shift transmission with 9 forward gears and 3 reverse gears, giving farmers good control over their work speed. The tractor is powered by a Yanmar 3TN82 engine, which is a liquid-cooled diesel engine with 3 cylinders. This tractor packs a punch with its 20 horsepower engine, making it suitable for small to medium-sized farms. The engine has a displacement of 83.1 cubic inches, with a bore of 3.23 inches and a stroke of 3.39 inches. The FX20 is easy to start, thanks to its electric starter. It measures 113 inches long, 49 inches wide, and 74 inches tall, allowing it to fit in tight spaces. With an operating weight of 2,438 pounds, it's sturdy enough for most farm jobs while still being manageable.

ManufacturerYanmarPower20 hpEngine3-cylTransthree-speed power shift
Jump to specs ↓Compare →
Yanmar FX20
Jump to Full Specifications List

Quick specs

Category
Sub-Compact
Engine Power Output
20hp
Operating Weight
2,438 lb
Transmission
three-speed power shift
Compare this model

At a glance

How the FX20 compares

vs. Sub-Compact median

Distribution

Engine Power (hp)

Across all Sub-Compact tractors

20 hp · 25th

This model

4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816

The FX20 ranks at the 25th percentile for engine power among recorded sub-compact tractors.

Overview

About the Yanmar FX20

The Yanmar FX20 is a compact and powerful tractor designed for various farming tasks. It features a three-speed power shift transmission with 9 forward gears and 3 reverse gears, giving farmers good control over their work speed. The tractor is powered by a Yanmar 3TN82 engine, which is a liquid-cooled diesel engine with 3 cylinders. This tractor packs a punch with its 20 horsepower engine, making it suitable for small to medium-sized farms. The engine has a displacement of 83.1 cubic inches, with a bore of 3.23 inches and a stroke of 3.39 inches. The FX20 is easy to start, thanks to its electric starter. It measures 113 inches long, 49 inches wide, and 74 inches tall, allowing it to fit in tight spaces. With an operating weight of 2,438 pounds, it's sturdy enough for most farm jobs while still being manageable.

Full specifications

Every recorded spec

General

ManufacturerYanmar
ModelFX20
CategorySub-Compact tractor
Operating weight2,438lb

Engine

MakeYanmar
Model3TN82
Power20hp
Cylinders3
Displacement83.1ci
Bore3.23in
Stroke3.39in

Transmission

Typethree-speed power shift
Forward gears9
Reverse gears3

Dimensions

Length113in
Width49in
Height74in
Operating weight2,438lb

Head to head

FX20 vs. Sub-Compact median

How the Yanmar FX20 compares to other Sub-Compact tractors

SpecThis modelSub-Compact medianDifferencePercentile
Engine Power20 hp26.9 hp-26%25th
Engine Displacement83.1 ci91.4 ci-9%44th
Cylinders33at median50th
Forward Gears99at median50th
Operating Weight2,438 lb2,700 lb-10%45th
Length113 in113 in0%49th
Width49 in50.7 in-3%45th
Height74 in78.4 in-6%38th

Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).

Explore

Yanmar siblings

All Yanmar models →

Explore

Similar-spec models

FAQ

Common questions

How powerful is the Yanmar FX20?

The Yanmar FX20 has an engine power output of 20 hp. It is powered by a 3-cylinder engine displacing 83.1 ci.

What type of transmission does the Yanmar FX20 have?

The Yanmar FX20 uses a three-speed power shift transmission offering 9 forward gears.

What is the working weight of the Yanmar FX20?

The operating weight of the Yanmar FX20 is approximately 2,438 lb.

What routine service does the Yanmar FX20 need?

Regular maintenance for the Yanmar FX20 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
