Sub-CompactPerformance profile
Yanmar FX22
The Yanmar FX22 is a compact tractor that packs a punch. It's powered by a Yanmar 3TNB82 engine, which is a 3-cylinder diesel motor that's liquid-cooled. This engine puts out 22 horsepower, making it suitable for a variety of farm tasks. The FX22 has a three-speed power shift transmission with 9 forward gears and 3 reverse gears, giving the operator plenty of options for different jobs. This tractor is built to be easy to use and maintain. It has an electric starter for quick and simple operation. The FX22 is compact, measuring 113 inches long, 49 inches wide, and 75 inches tall. Despite its small size, it weighs in at 2,480 pounds, giving it good stability for its class. Yanmar is known for making reliable, efficient machines, and the FX22 fits right into that reputation.
ManufacturerYanmarPower22 hpEngine3-cylTransThree-speed power shift
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 22hp
- Operating Weight
- 2,480 lb
- Transmission
- Three-speed power shift
At a glance
How the FX22 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
22 hp · 32nd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The FX22 ranks at the 32nd percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar FX22
The Yanmar FX22 is a compact tractor that packs a punch. It's powered by a Yanmar 3TNB82 engine, which is a 3-cylinder diesel motor that's liquid-cooled. This engine puts out 22 horsepower, making it suitable for a variety of farm tasks. The FX22 has a three-speed power shift transmission with 9 forward gears and 3 reverse gears, giving the operator plenty of options for different jobs. This tractor is built to be easy to use and maintain. It has an electric starter for quick and simple operation. The FX22 is compact, measuring 113 inches long, 49 inches wide, and 75 inches tall. Despite its small size, it weighs in at 2,480 pounds, giving it good stability for its class. Yanmar is known for making reliable, efficient machines, and the FX22 fits right into that reputation.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | FX22 |
| Category | Sub-Compact tractor |
| Operating weight | 2,480lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNB82 |
| Power | 22hp |
| Cylinders | 3 |
| Displacement | 83.1ci |
| Bore | 3.23in |
| Stroke | 3.39in |
Transmission
| Type | Three-speed power shift |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Dimensions
| Length | 113in |
|---|---|
| Width | 49in |
| Height | 75in |
| Operating weight | 2,480lb |
Head to head
FX22 vs. Sub-Compact median
How the Yanmar FX22 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22 hp | 26.9 hp | -18% | 32nd |
| Engine Displacement | 83.1 ci | 91.4 ci | -9% | 44th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 9 | 9 | at median | 50th |
| Operating Weight | 2,480 lb | 2,700 lb | -8% | 46th |
| Length | 113 in | 113 in | 0% | 49th |
| Width | 49 in | 50.7 in | -3% | 45th |
| Height | 75 in | 78.4 in | -4% | 41st |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar F22 | 22 hp | 2,458 lb | — | Compare → |
| Yanmar 221 | 21.5 hp | 1,537 lb | — | Compare → |
| Yanmar F18D | 21.5 hp | 2,183 lb | 1984–1994 | Compare → |
| Yanmar SA 221 | 21.5 hp | 1,537 lb | 2014+ | Compare → |
| Yanmar F235 | 22.7 hp | 2,072 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
| Belarus 200 | 22 hp | 2,600 lb | — | Compare → |
| Belarus 2011 | 22 hp | 2,602 lb | — | Compare → |
| Belarus 2045 | 22 hp | 2,712 lb | — | Compare → |
| Belarus 2145 | 22 hp | 2,700 lb | — | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

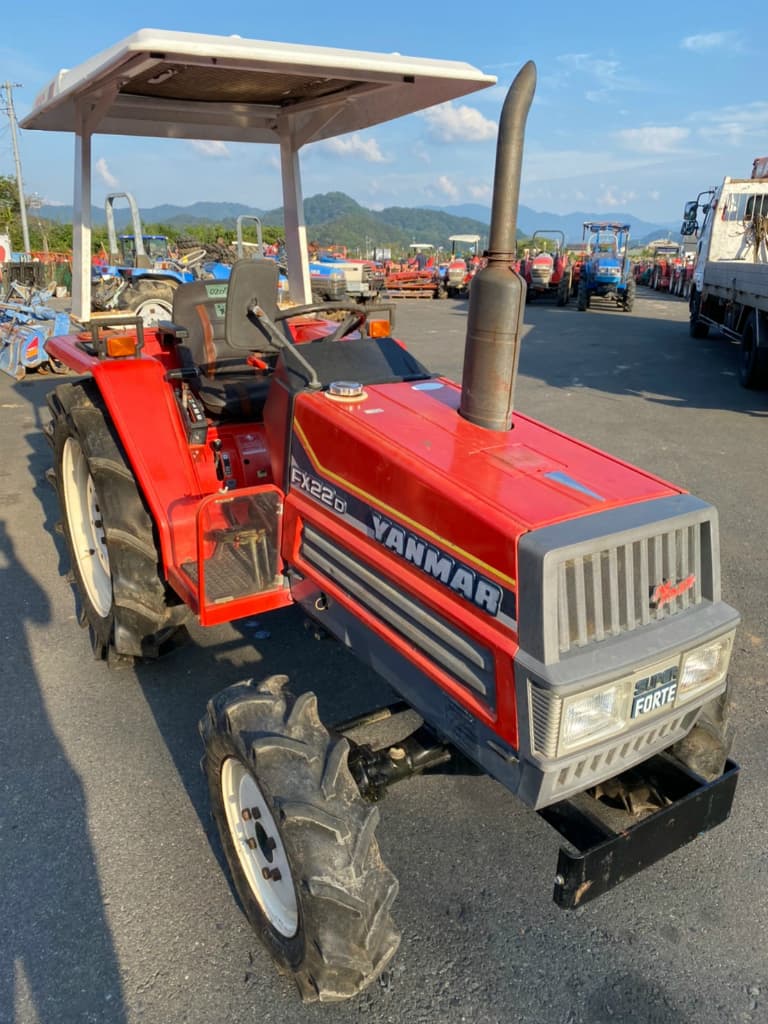

Yanmar FX22 photos
FAQ
Common questions
How much horsepower does the Yanmar FX22 have?
The Yanmar FX22 produces 22 hp from its 3-cylinder engine. Engine displacement is 83.1 ci.
What transmission is in the Yanmar FX22?
Transmission on the Yanmar FX22 is Three-speed power shift, with 9 forward speeds.
How much does the Yanmar FX22 weigh?
The Yanmar FX22 weighs about 2,480 lb in operating condition.
What maintenance does the Yanmar FX22 require?
Like any tractor, the Yanmar FX22 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
