UtilityPerformance profile
CaseIH Farmall 65A
The CaseIH Farmall 65A is a utility tractor built for various farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses an 8-speed transmission that's partly synchronized, giving farmers different speed options for their work. Under the hood, the Farmall 65A has a strong diesel engine made by FPT. This engine has 4 cylinders and is turbocharged for extra power. It can produce 64 horsepower, which is above average for tractors in its class. The engine size and power are good for a utility tractor, allowing it to handle many farm jobs. The tractor weighs 5,059 pounds, which is about average for its type. It's 137.2 inches long, 78.4 inches wide, and 96.9 inches tall, making it a good size for most farm uses. The Farmall 65A also has a rear hitch for attaching tools and an open center hydraulic system to power them.
ManufacturerCaseIHPower64 hpEngine4-cylTrans8-speed partially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 64hp
- Operating Weight
- 5,059 lb
- Transmission
- 8-speed partially synchronized
At a glance
How the Farmall 65A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
64 hp · 57th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmall 65A ranks at the 57th percentile for engine power among recorded utility tractors.
Overview
About the CaseIH Farmall 65A
The CaseIH Farmall 65A is a utility tractor built for various farm tasks. It has a 2WD drive system and hydrostatic power steering, making it easy to control. The tractor uses an 8-speed transmission that's partly synchronized, giving farmers different speed options for their work. Under the hood, the Farmall 65A has a strong diesel engine made by FPT. This engine has 4 cylinders and is turbocharged for extra power. It can produce 64 horsepower, which is above average for tractors in its class. The engine size and power are good for a utility tractor, allowing it to handle many farm jobs. The tractor weighs 5,059 pounds, which is about average for its type. It's 137.2 inches long, 78.4 inches wide, and 96.9 inches tall, making it a good size for most farm uses. The Farmall 65A also has a rear hitch for attaching tools and an open center hydraulic system to power them.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Farmall 65A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,059lb |
Engine
| Make | FPT (Fiat Powertrain Technologies) |
|---|---|
| Power | 64hp |
| Cylinders | 4 |
| Displacement | 195ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | 8-speed partially synchronized |
|---|---|
| Forward gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
Hydraulics
| Type | Open center fixed displacement gear pump |
|---|
Dimensions
| Length | 137.2in |
|---|---|
| Width | 78.4in |
| Height | 96.9in |
| Operating weight | 5,059lb |
Capacities
| Cooling system | 2.13gal |
|---|
Head to head
Farmall 65A vs. Utility median
How the CaseIH Farmall 65A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 64 hp | 55 hp | +16% | 57th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,059 lb | 5,303 lb | -5% | 48th |
| Length | 137 in | 137 in | 0% | 50th |
| Width | 78.4 in | 66 in | +19% | 79th |
| Height | 96.9 in | 94.1 in | +3% | 57th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH C60 | 64 hp | 7,605 lb | — | Compare → |
| CaseIH Farmall 65C | 64 hp | 5,776 lb | — | Compare → |
| CaseIH CS 63 | 63 hp | 5,975 lb | — | Compare → |
| CaseIH Farmall 70 | 65 hp | 5,152 lb | — | Compare → |
| CaseIH JX65 Maxxima | 65 hp | 6,010 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery

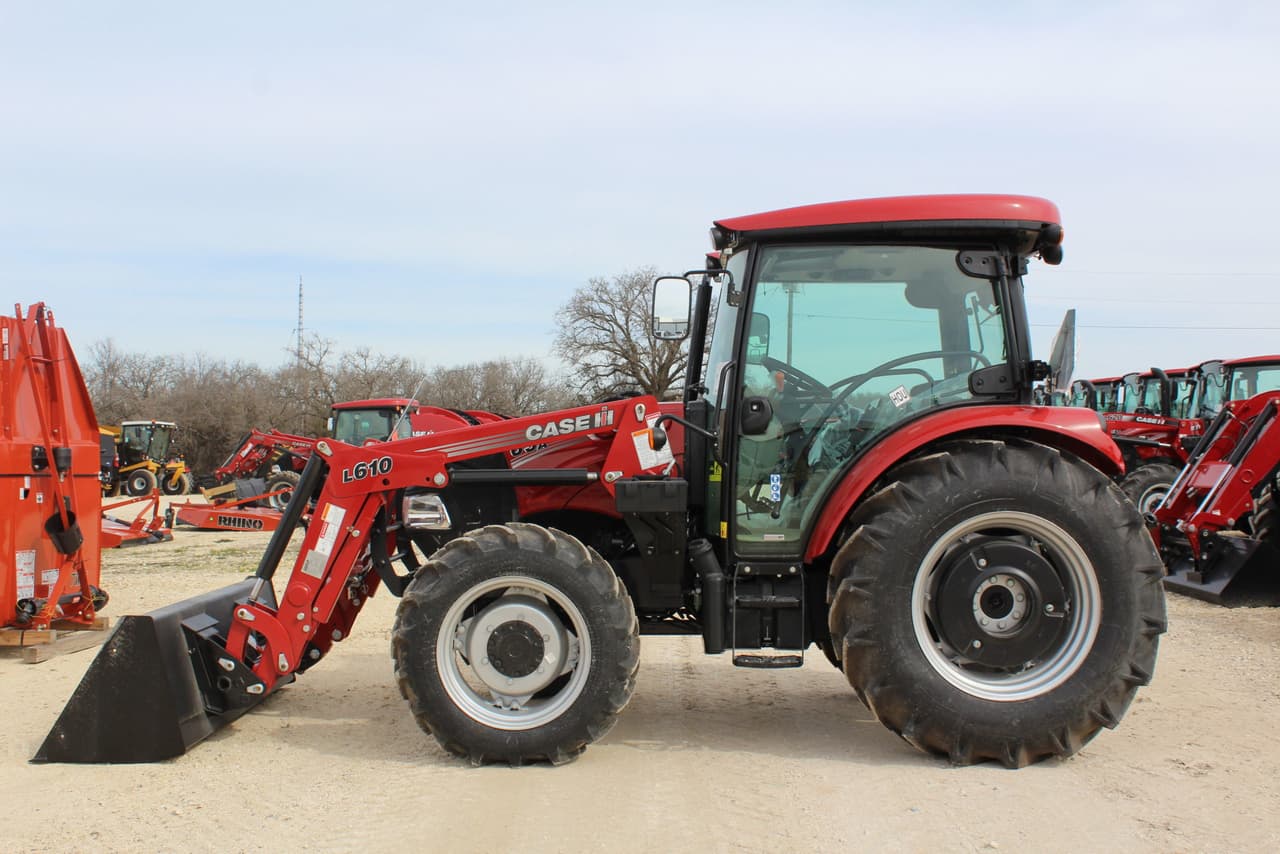

CaseIH Farmall 65A photos
FAQ
Common questions
What is the engine power output of the CaseIH Farmall 65A?
Rated engine output for the CaseIH Farmall 65A is 64 hp, delivered by a 4-cylinder engine. The engine displaces 195 ci.
What hydraulics does the CaseIH Farmall 65A have?
The CaseIH Farmall 65A uses an Open center fixed displacement gear pump hydraulic system.
What three-point hitch category does the CaseIH Farmall 65A use?
The CaseIH Farmall 65A has a Category II/I three-point hitch.
What is the operating weight of the CaseIH Farmall 65A?
In working trim, the CaseIH Farmall 65A comes in at roughly 5,059 lb.
Which transmission does the CaseIH Farmall 65A use?
The CaseIH Farmall 65A is equipped with an 8-speed partially synchronized transmission with 8 forward gears.
How do I maintain a CaseIH Farmall 65A?
Routine service for the CaseIH Farmall 65A covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
