Same brandJohn Deere 1010C
The John Deere 1010C is an industrial crawler tractor made from 1960 to 1964. It's a compact machine, measuring 102.1 inches long, 61.1 inches wide, and 70.9 inches tall. This tractor runs on a gasoline engine with four cylinders and 40 horsepower. The engine is average in size for its class but runs at a very high speed of 2500 rpm. The 1010C has a manual transmission with four forward gears and one reverse gear. It uses a unique steering system with multiple disc clutches and brakes. The tractor weighs 7580 pounds, which is above average for its type. It has an open operator station and electric starter. The fuel tank can hold 12 US gallons. This John Deere model is built for tough industrial work, with its crawler tracks providing good traction on various surfaces.

Key specifications
- Category
- Industrial
- Engine power
- 40hp
- Operating weight
- 7,580 lb
- Transmission
- Manual
Category comparison
1010C compared with its category
vs. Industrial medianDistribution
Engine Displacement (ci)
All recorded Industrial tractors
This model
The 1010C ranks at the 12th percentile for engine displacement among recorded industrial tractors.
Overview
About the John Deere 1010C
The John Deere 1010C is an industrial crawler tractor made from 1960 to 1964. It's a compact machine, measuring 102.1 inches long, 61.1 inches wide, and 70.9 inches tall. This tractor runs on a gasoline engine with four cylinders and 40 horsepower. The engine is average in size for its class but runs at a very high speed of 2500 rpm. The 1010C has a manual transmission with four forward gears and one reverse gear. It uses a unique steering system with multiple disc clutches and brakes. The tractor weighs 7580 pounds, which is above average for its type. It has an open operator station and electric starter. The fuel tank can hold 12 US gallons. This John Deere model is built for tough industrial work, with its crawler tracks providing good traction on various surfaces.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 1010C |
| Category | Industrial tractor |
| Type | Crawler |
| Years built | 1960–1964 |
| Operating weight | 7,580lb(3,438 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | John Deere 1.9L 4-cyl gasoline |
| Power | 40hp(29.83 kW) |
| Cylinders | 4 |
| Displacement | 115.5ci(1.89 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 3in(76.2 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Drive | 2WD |
| Steering | Multiple disc clutch and brake |
| Brakes | Mechanical contracting band |
| Cab | Open operator station |
Dimensions
| Length | 102.1in(2,593 mm) |
|---|---|
| Width | 61.1in(1,552 mm) |
| Height | 70.9in(1,801 mm) |
| Operating weight | 7,580lb(3,438 kg) |
Closest alternatives
1010C compared with the nearest models by horsepower
By engine horsepower, the nearest industrial models to the 1010C are the Massey Ferguson 202 Work Bull and the Empire 88. The Massey Ferguson 202 Work Bull matches it on rated power and weighs 4,520 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Empire 88 matches it on rated power and weighs 5,080 lb less, carrying 63 lb per horsepower against 190 lb. Of the 3 models, the 1010C has the highest weight per horsepower at 190 lb per hp.
| Spec | John Deere 1010C | Massey Ferguson 202 Work Bull | Empire 88 |
|---|---|---|---|
| Engine power | 40 hp29.8 kW | 40 hp29.8 kW | 40 hp29.8 kW |
| Operating weight | 7,580 lb3,438 kg | 3,064 lb1,390 kg | 2,500 lb1,134 kg |
| Weight per hp | 190 lb/hp115 kg/kW | 77 lb/hp47 kg/kW | 63 lb/hp38 kg/kW |
| Displacement | 115.5 ci1.89 L | 134 ci2.2 L | 134.6 ci2.21 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Manual | - | Gear |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1960-1964 | 1958-1967 | - |
Calculators
Calculators for the 1010C
PTO power
About 33 to 36 PTO hp
Estimated from the 40 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 40 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
220 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
40 hp is 29.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 1010C
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John Deere 1.9L 4-cyl gasolineAmazon
Fits the John Deere 1.9L 4-cyl gasoline 4-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John Deere 1.9L 4-cyl gasolineAmazon
Fits the John Deere 1.9L 4-cyl gasoline 4-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John Deere 1.9L 4-cyl gasolineAmazon
Fits the John Deere 1.9L 4-cyl gasoline 4-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John Deere 1.9L 4-cyl gasolineAmazon
Fits the John Deere 1.9L 4-cyl gasoline 4-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 1010C service and repair manualseManualOnline
Digital manuals. Built 1960 to 1964. Check the serial number range on the listing.
- John Deere 1010C operator's manualAmazon
Printed and reprint manuals. Built 1960 to 1964. Check the serial number range on the listing.
- John Deere 1010C service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
1010C vs. Industrial median
John Deere 1010C compared with other Industrial tractors
| Spec | This model | Industrial median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 116 ci | 284 ci | -59% | 12th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 5 | -20% | 30th |
| Operating Weight | 7,580 lb | 9,127 lb | -17% | 42nd |
| Length | 102 in | 125 in | -18% | 14th |
| Width | 61.1 in | 70.5 in | -13% | 22nd |
| Height | 70.9 in | 74.9 in | -5% | 38th |
Medians and percentiles are calculated from the industrial tractors in the database that have a recorded value for each specification (sample size 38–55 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

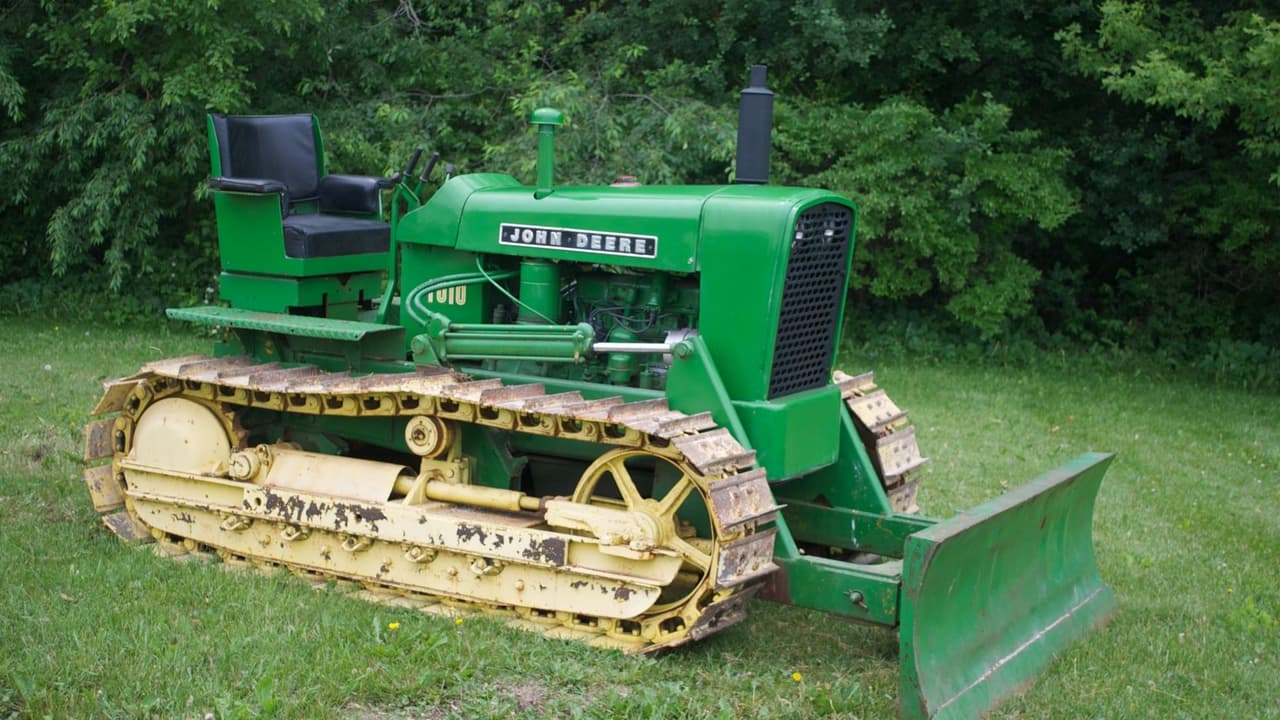

John Deere 1010C photos





FAQ
Frequently asked questions
When was the John Deere 1010C made?
The John Deere 1010C was manufactured from 1960 to 1964.
What is the operating weight of the John Deere 1010C?
The John Deere 1010C has an operating weight of about 7,580 lb.
Which transmission does the John Deere 1010C use?
The John Deere 1010C is equipped with a Manual transmission with 4 forward gears.
What hitch category is the John Deere 1010C?
The John Deere 1010C uses a Category I Opt hitch.
What is the engine power output of the John Deere 1010C?
Rated engine output for the John Deere 1010C is 40 hp, delivered by a 4-cylinder engine. The engine displaces 115.5 ci.
How do I maintain a John Deere 1010C?
Routine service for the John Deere 1010C covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
