Volvo Victor T230
The Volvo Victor T230 is a compact 2WD tractor designed for light farming tasks. It features a 4x2 chassis and a simple gear transmission with 5 forward gears and 1 reverse gear. The tractor is powered by a Bolinder 1052 engine, which is a 2-cylinder diesel engine with direct injection and liquid cooling. This tractor packs a punch with its 29 hp engine, which runs at 1700 rpm. The engine has a displacement of 136.7 ci, with a bore of 4.135 in and a stroke of 5.118 in. The Victor T230 has agricultural tires on both front and rear, with a wheelbase of 72.83 inches. It measures 112.2 in in length and weighs 4211 lb. The tractor comes with a category I hitch, an open center hydraulic system, and an open operator station. It also features an electric starter for easy operation.
Key specifications
- Category
- Sub-Compact
- Engine power
- 29hp
- Operating weight
- 4,211 lb
- Transmission
- Gear
Category comparison
Victor T230 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
29 hp · 55th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The Victor T230 ranks at the 55th percentile for engine power among recorded sub-compact tractors.
Overview
About the Volvo Victor T230
The Volvo Victor T230 is a compact 2WD tractor designed for light farming tasks. It features a 4x2 chassis and a simple gear transmission with 5 forward gears and 1 reverse gear. The tractor is powered by a Bolinder 1052 engine, which is a 2-cylinder diesel engine with direct injection and liquid cooling. This tractor packs a punch with its 29 hp engine, which runs at 1700 rpm. The engine has a displacement of 136.7 ci, with a bore of 4.135 in and a stroke of 5.118 in. The Victor T230 has agricultural tires on both front and rear, with a wheelbase of 72.83 inches. It measures 112.2 in in length and weighs 4211 lb. The tractor comes with a category I hitch, an open center hydraulic system, and an open operator station. It also features an electric starter for easy operation.
Full specifications
Recorded specifications
General
| Manufacturer | Volvo |
|---|---|
| Model | Victor T230 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 4,211lb(1,910 kg) |
Engine
| Make | Bolinder |
|---|---|
| Model | 1052 |
| Power | 29hp(21.63 kW) |
| Cylinders | 2 |
| Displacement | 136.7ci(2.24 L) |
| Bore | 4.14in(105 mm) |
| Stroke | 5.12in(130 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Cab | Open |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 112.2in(2,850 mm) |
|---|---|
| Operating weight | 4,211lb(1,910 kg) |
Capacities
| Cooling system | 2.38gal(9.01 L) |
|---|
Closest alternatives
Victor T230 compared with the nearest models by horsepower
Among sub-compact tractors, the New Holland TC29DA and the Bolens G294 TS2904 are closest to the Volvo Victor T230 in rated horsepower. The New Holland TC29DA matches it on rated power and weighs 1,740 lb less, carrying 85 lb per horsepower against 145 lb. The Bolens G294 TS2904 matches it on rated power and weighs 1,260 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Victor T230 has the highest weight per horsepower at 145 lb per hp.
| Spec | Volvo Victor T230 | New Holland TC29DA | Bolens G294 TS2904 |
|---|---|---|---|
| Engine power | 29 hp21.6 kW | 29 hp21.6 kW | 29 hp21.6 kW |
| Operating weight | 4,211 lb1,910 kg | 2,474 lb1,122 kg | 2,948 lb1,337 kg |
| Weight per hp | 145 lb/hp88 kg/kW | 85 lb/hp52 kg/kW | 102 lb/hp62 kg/kW |
| Displacement | 136.7 ci2.24 L | 81.2 ci1.33 L | 89.3 ci1.46 L |
| Cylinders | 2 | 3 | 3 |
| Transmission | Gear | Gear | - |
Calculators
Calculators for the Victor T230
PTO power
About 24 to 26 PTO hp
Estimated from the 29 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 29 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
169 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
29 hp is 21.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Victor T230 vs. Sub-Compact median
Volvo Victor T230 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 29 hp | 26.9 hp | +8% | 55th |
| Engine Displacement | 137 ci | 91.4 ci | +50% | 76th |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 5 | 9 | -44% | 4th |
| Operating Weight | 4,211 lb | 2,700 lb | +56% | 83rd |
| Length | 112 in | 113 in | -1% | 48th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 616–816 models).
Same manufacturer
Other Volvo models
Other manufacturers
Models with similar horsepower
Gallery

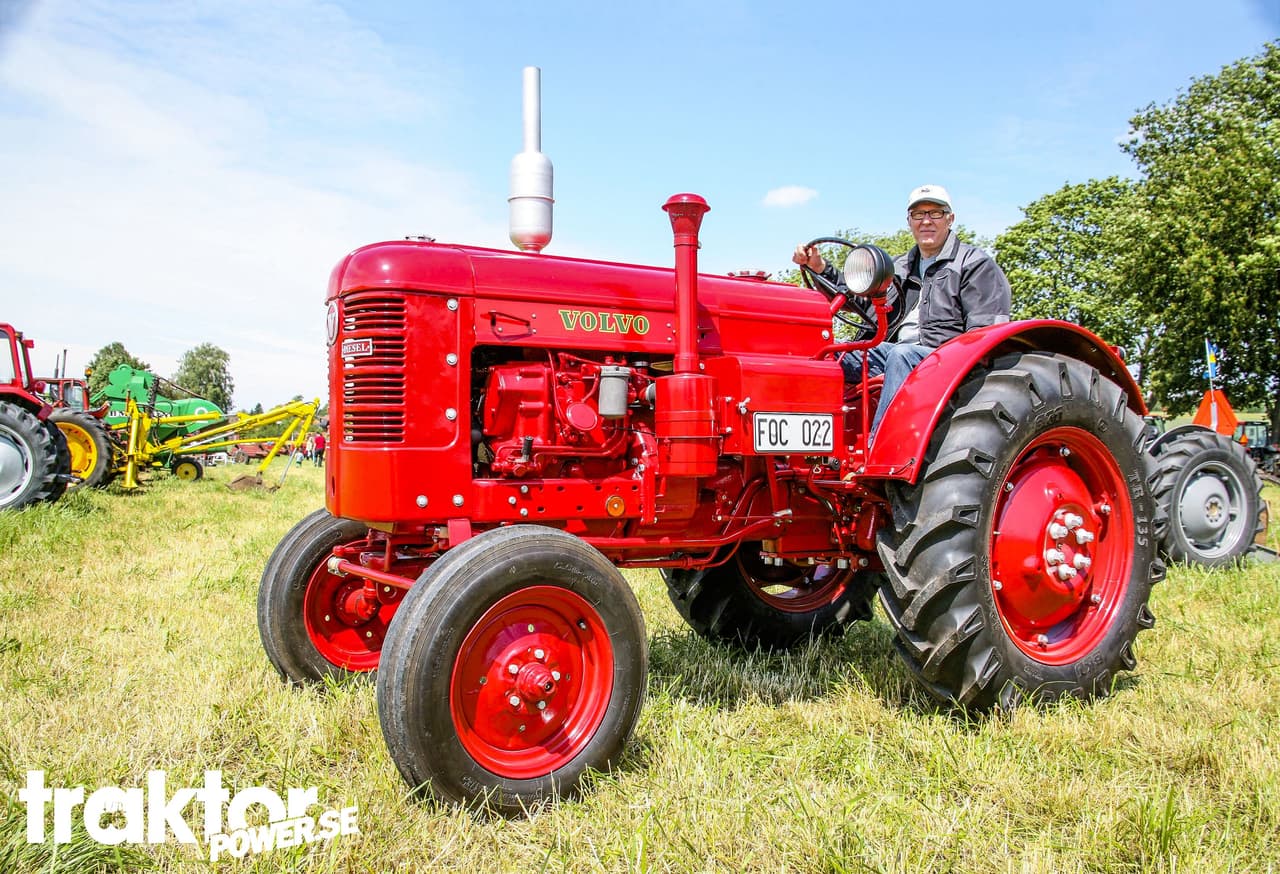

Volvo Victor T230 photos
FAQ
Frequently asked questions
What is the engine power output of the Volvo Victor T230?
Rated engine output for the Volvo Victor T230 is 29 hp, delivered by a 2-cylinder engine. The engine displaces 136.7 ci.
What is the operating weight of the Volvo Victor T230?
The Volvo Victor T230 has an operating weight of about 4,211 lb.
Which transmission does the Volvo Victor T230 use?
The Volvo Victor T230 is equipped with a Gear transmission with 5 forward gears.
What hydraulics does the Volvo Victor T230 have?
The Volvo Victor T230 uses an Open center hydraulic system.
What three-point hitch category does the Volvo Victor T230 use?
The Volvo Victor T230 has a Category I three-point hitch.
How do I maintain a Volvo Victor T230?
Routine service for the Volvo Victor T230 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
