Yanmar FX28D
The Yanmar FX28D is a compact and powerful tractor designed for various farming tasks. It features a four-speed power shift transmission with 12 forward gears and 6 reverse gears, giving farmers plenty of options for different jobs. The tractor is powered by a Yanmar 4TNA78 engine, which is liquid-cooled and runs on diesel fuel. This tractor packs a punch with its 4-cylinder engine that has a displacement of 100.3 cubic inches. The engine bore measures 3.07 inches, and the stroke is 3.39 inches. With 28 horsepower, the FX28D can handle many farm chores with ease. The tractor's compact size, measuring 129 inches long, 58 inches wide, and 78 inches tall, makes it easy to maneuver in tight spaces. Despite its small size, it has a solid operating weight of 3,792 pounds, providing good stability during work. The electric starter ensures quick and easy engine ignition, even in cold weather.
ManufacturerYanmarPower28 hpEngine4-cylTransFour-speed power shift
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 28hp
- Operating Weight
- 3,792 lb
- Transmission
- Four-speed power shift
At a glance
How the FX28D compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
28 hp · 53rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The FX28D ranks at the 53rd percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar FX28D
The Yanmar FX28D is a compact and powerful tractor designed for various farming tasks. It features a four-speed power shift transmission with 12 forward gears and 6 reverse gears, giving farmers plenty of options for different jobs. The tractor is powered by a Yanmar 4TNA78 engine, which is liquid-cooled and runs on diesel fuel. This tractor packs a punch with its 4-cylinder engine that has a displacement of 100.3 cubic inches. The engine bore measures 3.07 inches, and the stroke is 3.39 inches. With 28 horsepower, the FX28D can handle many farm chores with ease. The tractor's compact size, measuring 129 inches long, 58 inches wide, and 78 inches tall, makes it easy to maneuver in tight spaces. Despite its small size, it has a solid operating weight of 3,792 pounds, providing good stability during work. The electric starter ensures quick and easy engine ignition, even in cold weather.
Full specifications
Every recorded spec
General
| Manufacturer | Yanmar |
|---|---|
| Model | FX28D |
| Category | Sub-Compact tractor |
| Operating weight | 3,792lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 4TNA78 |
| Power | 28hp |
| Cylinders | 4 |
| Displacement | 100.3ci |
| Bore | 3.07in |
| Stroke | 3.39in |
Transmission
| Type | Four-speed power shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 6 |
Dimensions
| Length | 129in |
|---|---|
| Width | 58in |
| Height | 78in |
| Operating weight | 3,792lb |
Head to head
FX28D vs. Sub-Compact median
How the Yanmar FX28D compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28 hp | 26.9 hp | +4% | 53rd |
| Engine Displacement | 100 ci | 91.4 ci | +10% | 57th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 3,792 lb | 2,700 lb | +40% | 73rd |
| Length | 129 in | 113 in | +14% | 76th |
| Width | 58 in | 50.7 in | +14% | 68th |
| Height | 78 in | 78.4 in | -1% | 49th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Yanmar tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Yanmar AF328 | 28 hp | 2,756 lb | 2002–2005 | Compare → |
| Yanmar EF230H | 29.5 hp | 2,436.2 lb | — | Compare → |
| Yanmar FX26D | 26 hp | — | — | Compare → |
| Yanmar F255 | 24.7 hp | 2,183 lb | — | Compare → |
| Yanmar FX255 | 24.7 hp | 2,370 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
| Allis Chalmers D10 | 28.57 hp | 2,700 lb | 1959–1967 | Compare → |
Explore
Yanmar siblings
Explore
Similar-spec models
Gallery

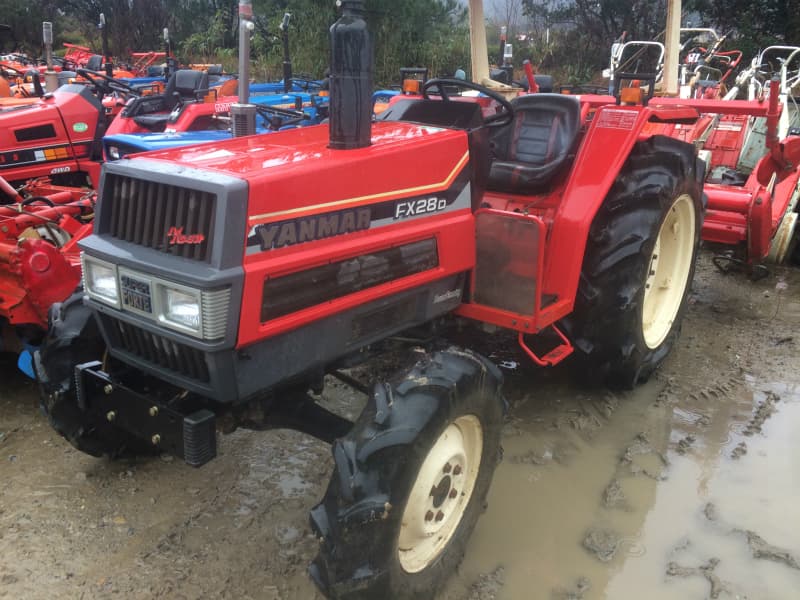

Yanmar FX28D photos
FAQ
Common questions
How powerful is the Yanmar FX28D?
The Yanmar FX28D has an engine power output of 28 hp. It is powered by a 4-cylinder engine displacing 100.3 ci.
What type of transmission does the Yanmar FX28D have?
The Yanmar FX28D uses a Four-speed power shift transmission offering 12 forward gears.
What is the working weight of the Yanmar FX28D?
The operating weight of the Yanmar FX28D is approximately 3,792 lb.
What routine service does the Yanmar FX28D need?
Regular maintenance for the Yanmar FX28D includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
